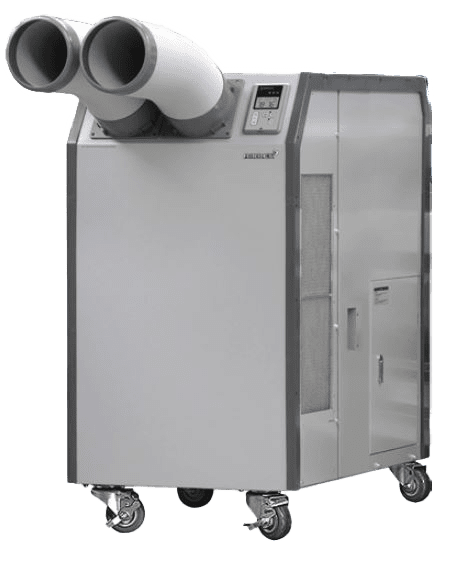

HSC-70P (7 Ton)

7-Ton Spot Cooler
Airrex spot coolers operate in air temperatures from 68° F to 115° F. These air conditioners utilize eco-friendly R-4 lOA refrigerant.
Airrex spot cooler air conditioners may require a fresh air supply for proper operation. Includes removable, washable air filters for
easy maintenance. Thermostatically protected compressor includes high and low pressure warnings. Moves easily on four swivel casters (4 locking). 84,000 BTU Cooling feature two 8" diameter front cold air discharge and 16" diameter top warm air discharge. Optional Warm Air Duct includes ducting and a 2' x 2' ceiling flange for warm air exhausting.
ETL listed. Condensate Pump that plugs directly into the portable air conditioner.
1 year warranty and 3 years on compressor.
Physical Data
- Weight: 628 lbs
- Depth: 54"
- Length: 29"
- Height: 57"
Capacity Rating Condition
- Cooling: 84,000 Btu/h
Electrical
- 480V~ / 3 Phase / 60 Hz
- Power Consumption:
- Cooling: 9.51 kW
- Current
- Cooling 15.5 A
- Min.-Max. Voltage: 408- 528 V~
Operating Conditons
- Min/Max
- Cooling: 68~115°F(20~46°c)
Fans
- Indoor
- Cooling: 1,950 CFM
- Fan Type: Centrifugal
- Outdoor
- Air Volume: 3,220 CFM
- Fan Type: Centrifugal
Refrigerant
- R- 410A
