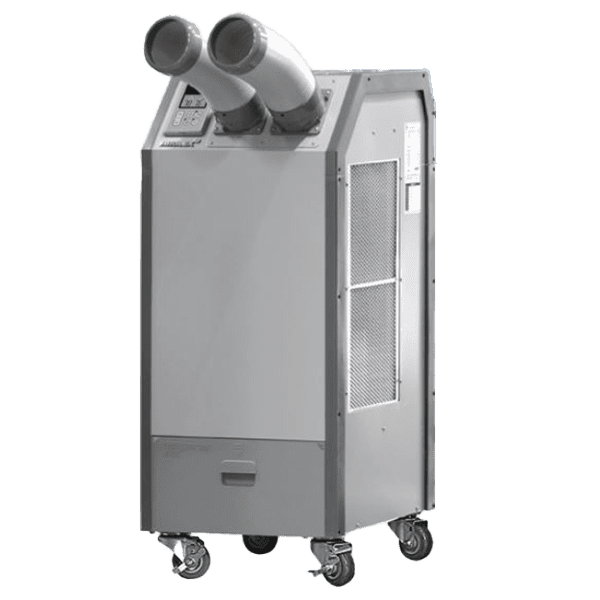

HSC-14P (1.2 Ton)
1.2 Ton HSC-14
Airrex spot coolers operate in air temperatures from 61 ° F to 115° F.
These air conditioners utilize eco-friendly R-4 lOA refrigerant. Airrex spot cooler air conditioners may require a fresh air supply
for proper operation. Includes removable, washable air filters for easy maintenance. Thermostatically protected compressor includes high and low pressure warnings. Moves easily on four swivel casters (2 locking). 13,600 BTU Cooling feature two 5" diameter front cold air discharge and 12" diameter top warm air discharge.
Optional Warm Air Duct includes ducting and a 2' x 2' ceiling flange for warm air exhausting.
ETL listed. Optional Condensate Pump that plugs directly into the portable air conditioner.
1 year warranty and 3 years on compressor.
Physical Data
- Weight: 172 lbs
- Depth: 25"
- Length: 22"
- Height: 49"
Capacity Rating Condition
- Cooling: 13,600 Btu/h
Electrical
- 115V~ / 1 Phase / 60 Hz
- Power Consumption:
- Cooling: 1.27 kW
- Current
- Cooling 11.6 A
- Min.-Max. Voltage: 98-127 V~
Operating Conditons
- Min/Max
- Cooling: 65~113°F(18~40°c)
Fans
- Indoor
- Cooling: 420/ 370 CFM
- Fan Type: Centrifugal
- Outdoor
- Air Volume: 870 / 810 CFM
- Fan Type: Centrifugal
Refrigerant
- R- 410A
