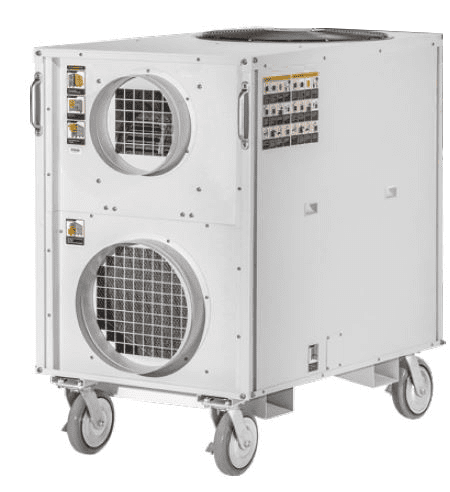

AHSC- 42 (3.5 Ton)
Simple Design, Duct Connection Type!
Airrex heatpump operate in air temperatures from 65°to 113°F
for cool mode, dehumidification from 52.8 to 76.56(gal/day) and 50°to 81°F for heat model.
These heatpump utilize eco-friendly 410A refrigerant.
Airrex heatpump may require a fresh air supply for proper operation. Includes removable, washable air filters for easy maintenance. Thermostatically protected compressor includes high and low pressure warnings. Moves easily on swivel casters(B"locking).
42,000BTU cooling and 47,000BTU heating feature 12" supply duct and 16" return duct and 26"diameter top exhaust, with optional 20" reducer.
1 year warranty and 3 years on compresso.
Physical Data
- Weight: 553 lbs
- 29" x 57" x 51"(WxDxH)
Power Supply
- 220V~ /60Hz /1 Ph
- Current:
- Cooling: 4.5 kW
- Heating: 4.5 kW
Fans
- Indoor
- Fan: Centrifugal
- Cooling: 1,290 CFM
- Heating: 1,290 CFM
- Outdoor
- Fan: Axial
- 2,580 CFM
Capacity Rating Condition
- Cooling: 42,000 Btu/h
- Heating: 47,000 Btu/h
Refriderant
- R-410A
Operating Conditions
- Cooling: 65 ~ 113°F (18~45°C)
- Heating: 50~81°F (10~27°C)
