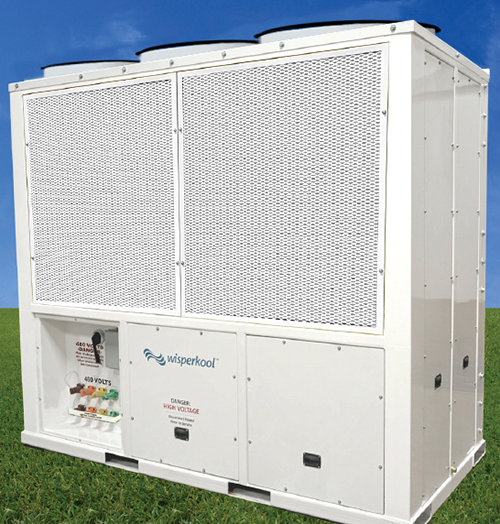

30 Ton HVAC

SKU: 30 Ton HVAC

Description

Physical Data

  • Weight: 3,507 lb
  • Depth: 47″
  • Length: 95″
  • Height: 86″
  • Fork Pockets: 10″ x4″

Electrical Features

  • Variable Speed Blower Motor
  • “Daisy Chain” Cam-Lock Connections
  • Individual Breakers on All Loads
  • 15 KVA Transformer (Available as an option)
  • 120 Volt Convenience Outlet (Available as an option)

Cabinet Features

  • Heavy Duty Welded Steel Construction
  • Bolt on Panel Design with Handle
  • Exterior Panels and Frame Powder-Coated
  • Side and Top Tent Clamp Tethers
  • Stainless Steel Hardware
  • Duct Adaptors (Optional)
  • Condensate Pump (Optional)

Refrigeration Features

  • Refrigerant R410A
  • Suction Valves
  • Hot Gas By-Pass Valve



Blower Data

  • Variable Speed Frequency Drive
  • High Speed CFM: 9,500
  • Low Speed CFM: 7,800
  • Max Static: .78″ WG
  • Motor: 10 HP

Electrical Data

  • 480 volt/60 Hertz 3 Phase
  • Cooling FLA: 55 amps
  • Heating FLA: 92 amps
  • MCA: 121 amps

Heating Coil Data

  • High Capacity Coil Style



Heating and Cooling Data

  • 72 kW of Heat
  • Cooling Capacity 386,746 BTUs
  • cools/heats 3000 sq ft.

Telemetric Controls

  • Optimal

Compressor Data

  • Two Bitzer 15 ton Scroll Compressors
  • One Per Stage
